CASE CX210C
Reliable power and productivity
This unit is a perfectly balanced all-rounder selected to suit southern contractors. The superior hydraulic system of the CX210C offers notable breakout forces and cycle times and impressive productivity. Engineered to excel in larger-scale earthmoving situations and major civil works, this carrier machine is ready to tackle any job thrown its way with a full quiver of hydraulic attachments available.
Specs
| Weight (kg) | 21600 |
| Width (mm) | 2990 |
| Power (hp) | 160 hp |
| Max Aux. Hyd. Flow (L/pm) | 420 |
| Max Aux. Hyd. Pressure (bar) | 340 |
| Max Dig Depth (mm) | 6650 |
| Max Reach (mm) | 9900 |
| Fuel Tank Capacity (L) | 410 |
| Hitch Type | Attach2 Hydraulic |
| Hitch Pick-up Width (mm) | 298 |
| Hitch Pin Center Pick-up Range (mm) | 400–495 |
| Hitch Pin Diameter (mm) | 80 |
Features
- ROPS cabin with air conditioning
- Steel Tracks
- Long undercarriage with 600mm grousers
- Optional Independent 2nd aux. circuit with case drain available on some machines
- 2 speed travel
- Optional bolt-on track grip cleats available
Hydraulic hitch
- 2 buckets. (2000mm tilt and 1130mm dig)
Or:
Tilting hitch
- 2 buckets (2000mm wide and 1130mm dig)
- Aux. circuit with electro-hydraulic proportional joystick control
Transport
This machine requires transport. Ask our helpful team to arrange transport to site for you. Please include your location in the quote request form.
Instructions

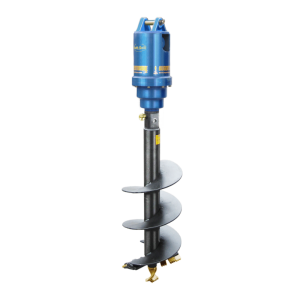

Available Attachments
Get more out of your machine hire by adding a premium excavator attachment.
